一、特點與用途
傳感器采用輪輻式結構，利用剪切應力原理，具有外形低、抗偏載、精度高、強度好等特點。適用于各種電子秤、水泥配料倉、攪拌機、材料力學試驗機等各種工業自動化測控系統。
二、技術參數
| 額定載荷 Rated load | 100kg～500t |
| 靈敏度 Output sensitivity | 2.0±0.05 mV/V |
| 非線性 Non-linearity | ±0.1 %F?S |
| 滯后誤差 Lag error | ±0.1 %F?S |
| 重復性誤差 Repeatability | ±0.1 %F?S |
| 蠕變 Creep | ±0.1 %F?S |
零點溫度系數 Zero temperature coefficient | ±0.1%F?S/10℃ |
靈敏度溫度系數 Sensitivity temperature coefficient | ±0.1%F?S/10℃ |
| 輸入電阻 Input resistance | 750±30Ω或 1.45K±50Ω |
| 輸出電阻 Input resistance | 700±5Ω或 1.4K±5Ω |
| 工作溫度范圍 | -20℃～+70℃ |
| 安全過載 Safe overload | 120~150 %F?S |
| 絕緣電阻 Insulation resistance | ≥2000MΩ |
| 激勵電壓 Incentive voltage | 5V～24V |

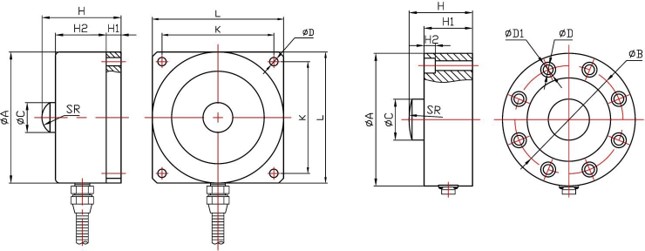

三、外形尺寸
量程 | ?A | H | ?B | ?C | H1 | H2 | K | L | SR | ?D | ?D1 |
100kg～700kg | ?72 | 41 | - | ?16 | 8 | 25 | 62 | 72 | 8 | 4-?4.6 | - |
1t～8t | ?88 | 53 | - | ?20 | 10 | 34 | 75 | 88 | 12 | 4-?5.6 | - |
10t～15t | ?114 | 70 | - | ?25 | 13 | 46 | 95 | 114 | 25 | 4-?6.5 | - |
20t～30t | ?145 | 91 | - | ?32 | 16 | 60 | 120 | 145 | 30 | 4-?11 | - |
40t～50t | ?148 | 88 | ?124 | ?45 | 70 | 15 | - | - | 50 | 4-?13 | 4-?20 |
60t～80t | ?178 | 85 | ?145 | ?55 | 65 | 15 | - | - | 100 | 8-?13 | 8-?20 |
100t | ?208 | 95 | ?176 | ?60 | 75 | 20 | - | - | 100 | 8-?13 | 8-?20 |
200t | ?260 | 110 | ?210 | ?90 | 90 | 22 | - | - | 200 | 8-?17 | 8-?27 |
