MHBLY輪輻拉壓力傳感器采用輪輻結構，利用剪切應力原理，具有外形低、精度高、強度好等特點。適用于各種料斗秤、電子衡器等工業自動化測量控制系統。
二、技術參數
| 額定載荷 Rated load | 50kg～500t |
| 靈敏度 Output sensitivity | 2.0±0.05 mV/V |
| 非線性 Non-linearity | ±0.1 %F?S |
| 滯后誤差 Lag error | ±0.1 %F?S |
| 重復性誤差 Repeatability | ±0.1 %F?S |
| 蠕變 Creep | ±0.1 %F?S |
零點溫度系數 Zero temperature coefficient | ±0.1%F?S/10℃ |
靈敏度溫度系數 Sensitivity temperature coefficient | ±0.1%F?S/10℃ |
| 輸入電阻 Input resistance | 750±30Ω或 1.45K±50Ω |
| 輸出電阻 Input resistance | 700±5Ω或 1.4K±5Ω |
| 工作溫度范圍 | -20℃～+70℃ |
| 安全過載 Safe overload | 120~150 %F?S |
| 絕緣電阻 Insulation resistance | ≥2000MΩ |
| 激勵電壓 Incentive voltage | 5V～24V |

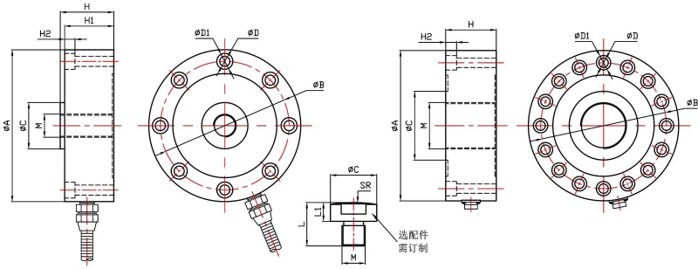

三、外形尺寸
量程 | ?A | ?B | ?C | M | H | H1 | H2 | ?D | ?D1 | L | L1 | SR |
| ?88 | ?72 | ?22 | M12X1.75 | 34 | 31 | 7.2 | 8-?7 | 8-?11 | 25 | 10 | 50 |
It～5t | ?105 | ?89 | ?32 | M16X1.5 | 37 | 34 | 7.2 | 8-?7 | 8-?11 | 30 | 13 | 100 |
10t～20t | ?120.6 | ?101.8 | ?39 | M32X1.5 | 53.5 | 41 | 10.5 | 8-?9 | 8-?14 | 50 | 20 | 125 |
30t | ?141 | ?116.8 | ?50.4 | M40X1.5 | 57.2 | 50.8 | 11 | 8-?11 | 8-?18 | 60 | 25 | 150 |
40t～60t | ?208 | ?174 | ?95 | M64X3 | 70 | - | 15 | 16-?13 | 16-?20 | 85 | 35 | 300 |
80t～100t | ?280 | ?230 | ?120 | M76X3 | 90 | - | 20 | 16-?17 | 16-?30 | 95 | 45 | 400 |
