全國服務熱線MHBHD定滑輪式荷重傳感器采用雙剪切梁結構，綜合精度高、安裝簡單方便、橫向抗干擾好，長期穩定性好。
額定載荷 Rated load | 2t～50t |
靈敏度 Output sensitivity | 1.5±0.05 mV/V |
非線性 Non-linearity | ±0.05～±0.1 %F?S |
滯后誤差 Lag error | ±0.05 %F?S |
重復性誤差 Repeatability | ±0.05 %F?S |
蠕變 Creep | ±0.05 %F?S |
零點溫度系數 Zero temperature coefficient | ±0.05 %F?S/10℃ |
靈敏度溫度系數 Sensitivity temperature coefficient | ±0.05 %F?S/10℃ |
輸入電阻 Input resistance | 750±30Ω |
輸出電阻 Input resistance | 700±5Ω |

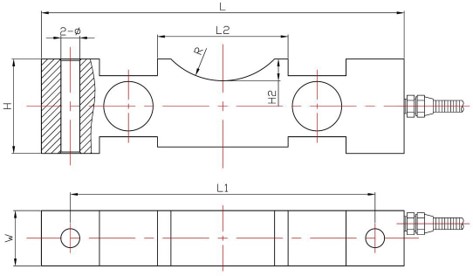

量程 | L | W | H | L1 | L2 | R | H2 | 2-? |
2t | 250 | 32 | 65 | 210 | 90 | 50 | 15 | ?13 |
3t | 250 | 38 | 65 | 210 | 90 | 50 | 15 | ?13 |
5t | 300 | 44 | 80 | 250 | 110 | 60 | 18 | ?17 |
10t | 300 | 44 | 80 | 250 | 110 | 60 | 20 | ?17 |
15t～20t | 350 | 60 | 106 | 295 | 146 | 80 | 23 | ?22 |
30t | 410 | 68 | 114 | 340 | 170 | 90 | 26 | ?26 |
50t | 460 | 68 | 116 | 360 | 170 | 90 | 26 | ?32 |
